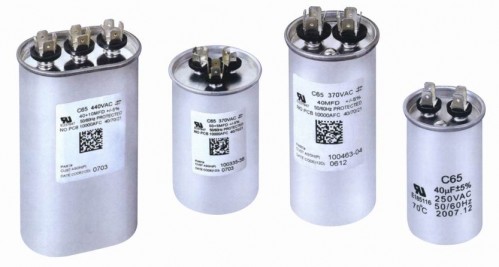

Capacitor CBB65

Enquiry Now

Details

The CBB65 series capacitors are designed with top quality polypropylene film as a medium which can endure high temperature, and adopt advanced technology of evaporating Zn-Al alloy. With the adoption of non-oil construction for CBB65 and the circular shape, oval shape, oil filled, explosion proof construction, the products have the features of low dissipation factor, enduring high temperature.

Capacity (µF)	250V_AC			370V_AC			450V_AC
Capacity (µF)	D	H	S	D	H	S	D	H	S
10	40	55	16	45	55	18	45	55	18
15		55			60			65
20		65			70			75
25		70			75			90
30		75			85			100
35	45	75	18		95		50	90
40		80		50	90			100
45		80			95			110
50		90			100			120
60		100			115			130
70	50	100		55	110	20	55	130	20
25+1.5:2	50	70		50	85		50	90
30+1.5:2		80			100			100
35+1.5:2		80			105			110
40+1.5:2		85			110			120
50+1.5:2:3		90		55	110		55	115
