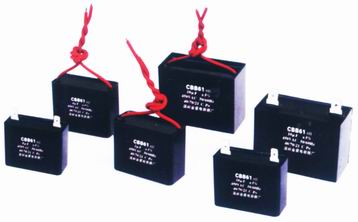

Capacitor CBB61

Enquiry Now

Details

Feature:
All performances reach IEC252 requirements, with good self-healing characteristic ,long life-span and high proportionality, it is widely used as the start-up and running capacitor that is special for electric appliances such as electric fanners, ventilators, and exhaust fanners.
Technique Data:
·Operating Temperature: -25~+85℃
·Rated Voltage: 250V,400V,450V,630V
·Capacitance Range: 3-150uF
·Capacitance Tolerance: ±5％,±10％
·Insulation Resistance: CR≤3uF;≥30000MΩ. CR≤3uF;≥7500S
·Dissipation Factor: CR≤3uF; ≤0.002(100Hz,20℃).CR≤3uF;≤0.002(100Hz,20℃)
·Endurance: 1.6UR(5S)

Capacity (µF)	450V_AC			250V_AC
	L	W	H	L	W	H
1	37	15	26
1.2
1.5
2		20	31	38	13	22
2.5
3	47	18	34
3.5				37	15	26
4
4.5	50	23	40
5
6				47	18	34
8	47	26	38
10		32	39
12
15		36	47			39
16	60	28	42
20	57	35	50	60	25	42
25	60	39
30				57	32	50
35
42				60	28
