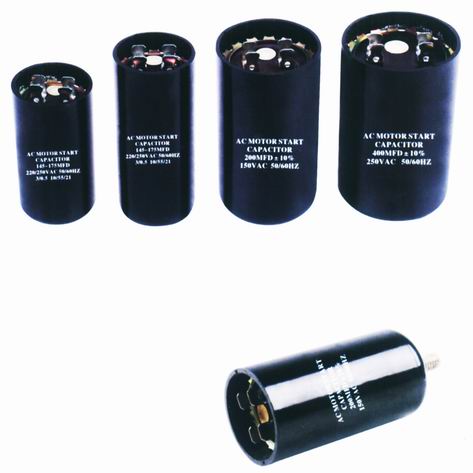

Capacitor CD60

Enquiry Now

Details

Adopting high-purity electron aluminum foil polar plates with small volume , large capacity and stable reliability and provided with metal or PBT shell with double tabs or lead wire terminals.

Application: The product is widely used for single alternating current motor with 50HZ or 60HZ as the starter , which can make the motor obtain a higher turning distance under a low starting current.

Specifications:
·Rated Frequency: 50/60Hz
·Rated Voltage: 110VAC-330VAC
·Rated Capacitance: 21-1200MFD
·Capacitance Tolerance : - 10/+10％
·Temperature Range: -10/+50degree
·Dissipation factor: ＜0.10
·Testing Voltage: T-T 1.2Ur 2s,T-C 2000VAC 10s
·Standard: GB/T 3667.1----2005/IEC 60252-1:2001

Capacity (MFD)	125V_AC		165V_AC		250V_AC		330V_AC
21-25	36.50		36.50	69.85	36.50	69.85	36.50	69.85
25-30
30-36							46.02	85.72
36-43
43-52						85.72
47-56
53-64
64-77					46.02
72-86
88-106				85.72		112.12	52.37	111.12
108-130							65.50
124-149
130-156			46.02
145-174
161-193					52.37
189-227		85.72
216-259					65.50
233-280				111.12
243-292		11.12
270-324
324-389		85.72	52.37
340-408	46.02
378-454
400-480
430-516			65.50
460-552
540-648		11.12
590-708
645-774	52.37
708-850
720-964
800-960
